DORENCE is the commemorated name in the industry involved in the supply of hardware and glass fitting items with unique look. Currently you are viewing product Model - DI 650S
Versions - With scissor arm and with Parallel arm bracket
Max Door Width - 850mm
Max Door Weight - 150Kg
Mounting Height - Only 55mm ( For Conceal )
Max Opening Angle - Approx 130°
Max Hold Open Angle - 130°
Size - EN2 Fixed power strength, adjustable as per fixing
Adjustments - Closing, Latching speed adjustment and back check function
Mounting - For DIN Left hand and DIN right hand use Non-handed Regular, Parallel & Over Door Mounting Universal Fitting Tested to 500,000 Operation cycles.
Length - 210mm
Height - 48mm
Width - 62mm
For Users
The door closer works with constant parameters independent of changes in ambient temperature
Two valves for optimum closing speed and latching action
Safe even if door opened too forcefully
For Sellers
Low-cost solution for standard doors
One model for all mounting positions
Easy to read instructions, saving over 12 minutes of fitting time
For Installers
Quick and easy to install
Fixes perfectly to all door types without the need for a mounting backplate
Closing Speed
Continuously adjustable closing speed from approx 180° to 15°
Latching Speed
Continuously adjustable latching speed from approx 15° to 0°
Adjustment of Closing SpeedTurn the valve to clock wise to decrease the closing speed
Turn the valve to counter clock wise direction to increase closing speed
Do not overturn valves counter clockwise

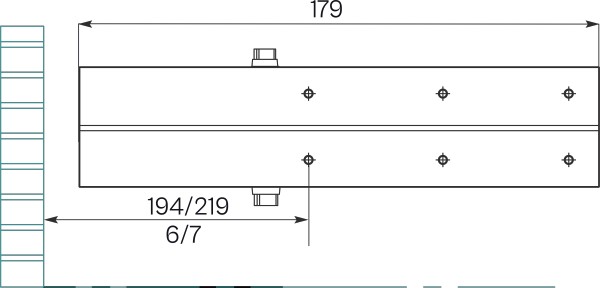

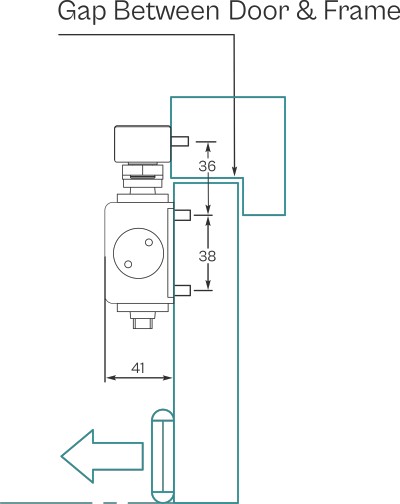

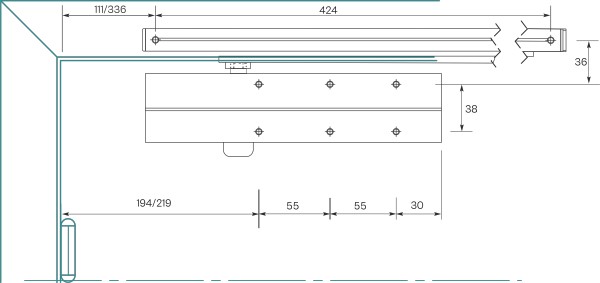

All dimensions are in Milimeters.
